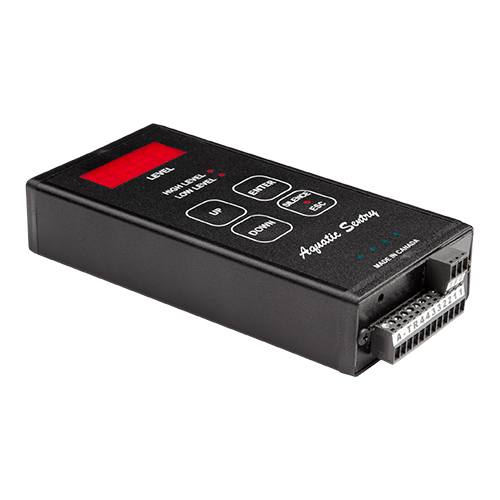

Liquid Gauge Model 200 CO

with controller and level output

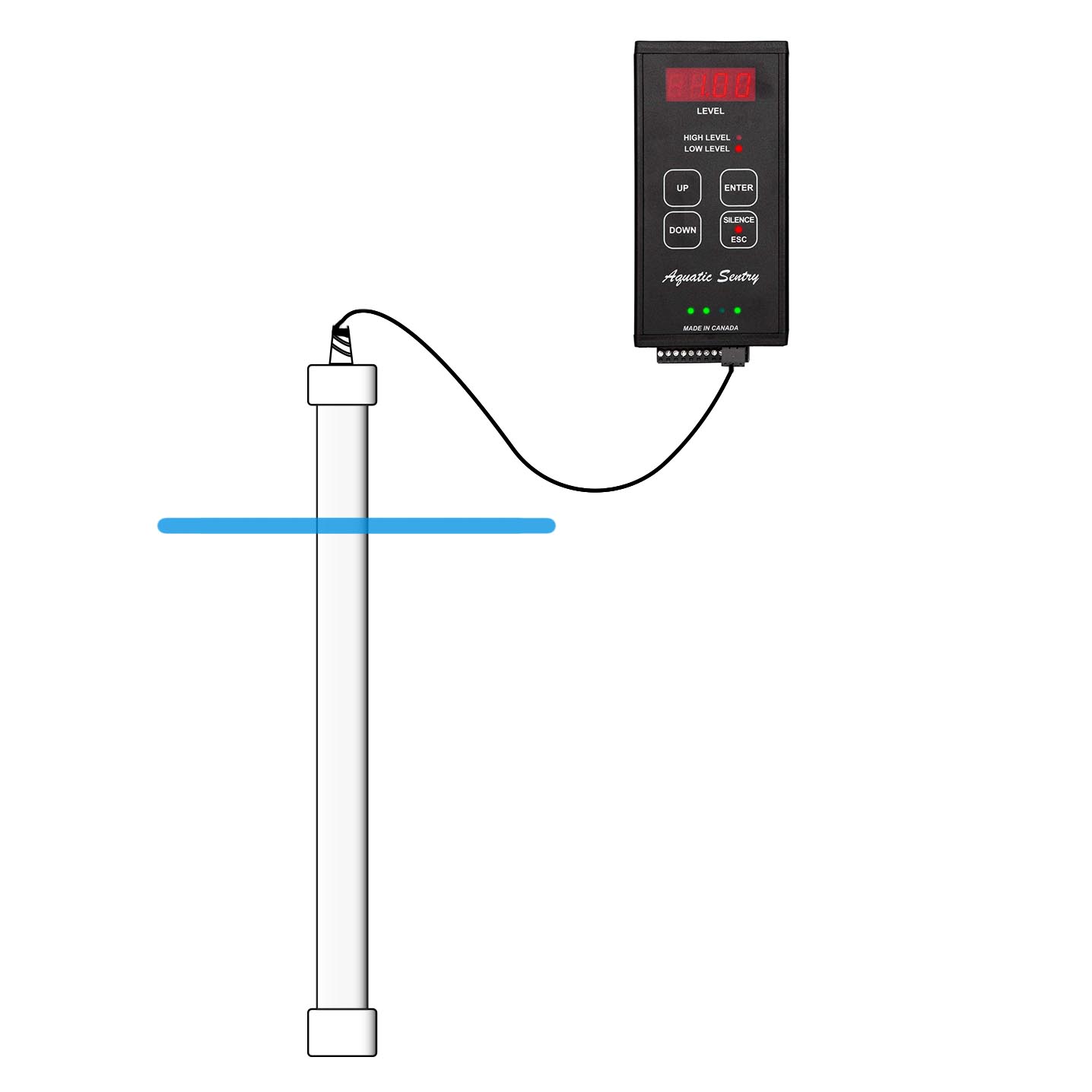

Measure the depth of water in cisterns, sumps, septic systems, holding tanks, pump chambers, trucks, water treatment plants or storage tanks. Alarm a HIGH and LOW level condition. Four control relays can be configured to operate pumps, fill valves, remote alarms, security systems or other control applications. Analog 1-5VDC and digital RS232 outputs can feed level to control applications and remote monitoring. Installation is as simple as dropping the pre-calibrated sensor into the liquid.

Measure the depth of water in cisterns, sumps, septic systems, holding tanks, pump chambers, trucks, water treatment plants or storage tanks.

Features

  • Indoor digital display of water depth
  • Digital RF sensor with +/- 3/8” resolution throughout span
  • Configurable HIGH and LOW alarm points and four control relays
  • Analog 1-5VDC and digital RS232 outputs
  • Audible alarm auto reset
  • Self-diagnostic functions
  • Outdoor junction box
  • Sensor length 1.5m (5 feet) standard, .3m (1 foot) to 4.9m (16 feet) available
Power Supply 120VAC, 60 Hz, UL listed and CSA certified, adapting to 12 VDC

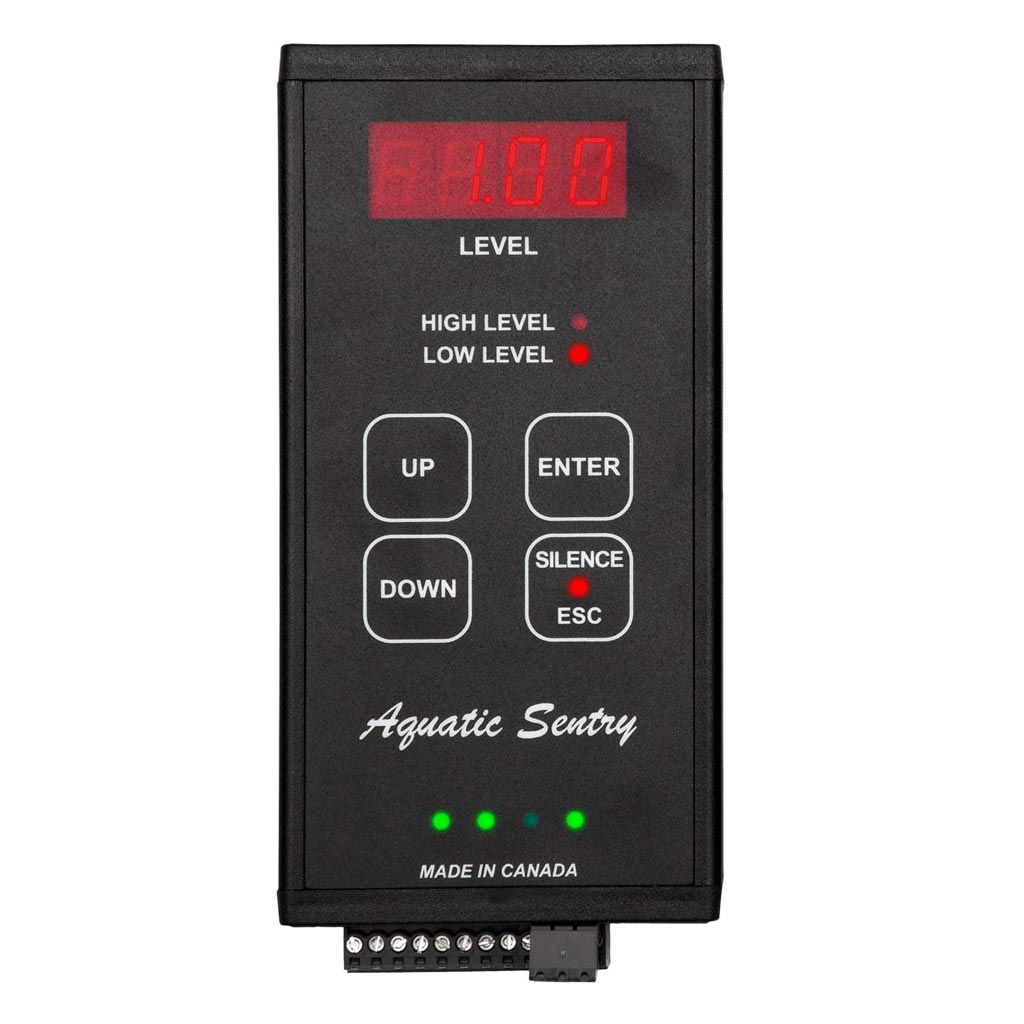

Indoor Display 4 digit LED, programmable HIGH and LOW level visual and audio alarms. Audio transducer 85db min @ 10 cm. Relays rated 5 Amps at 30VDC.
Sensor Sealed 1 ½” PVC pipe, 3m (9’) SJOOW cable, NEMA 6P weatherproof junction box
